Appendix C — Interpretability in Human Translation Workflows

C.1 Machine Translation Post-editing for Typologically Diverse Languages

C.1.1 Subject Information

During the setup of our experiment, one translator refused to carry out the main task after the warmup phase, and another was substituted by our choice. Both translators were working in the English-Italian direction and were found to make heavy usage of copy-pasting during the warmup stage, suggesting an incorrect utilization of the platform in light of our guidelines. Both translators, which we identified as T\(_2\) and T\(_3\) for Italian, were replaced by T\(_5\) and T\(_4\) respectively. Table C.1 reflects the final translation selection for all languages, with the information collected by means of the pre-task questionnaire.

Gender Age Degree Position En Level YoE PE YoE % PE
Arabic T\(_1\) M 35-44 BA Freelancer C2 > 15 2-5 20%-40%
T\(_2\) M 25-34 BA Employed C2 5-10 2-5 60%-80%
T\(_3\) M 25-34 MA Freelancer C1 5-10 < 2 20%-40%
Dutch T\(_1\) M 25-34 MA Freelancer C2 5-10 5-10 60%-80%
T\(_2\) F 35-44 MA Freelancer C1 10-15 5-10 40%-60%
T\(_3\) F 25-34 MA Freelancer C2 2-5 2-5 20%-40%
Italian T\(_1\) F 25-34 MA Employed C1 5-10 5-10 20%-40%
T\(_5\) F 25-34 MA Freelancer C1 2-5 2-5 40%-60%
T\(_4\) F 35-44 BA Freelancer C2 10-15 5-10 > 80%
Turkish T\(_1\) F 25-34 BA Freelancer C2 5-10 2-5 < 20%
T\(_2\) F 25-34 BA Freelancer C1 5-10 5-10 < 20%
T\(_3\) M 25-34 High school Freelancer C2 10-15 < 2 < 20%
Ukrainian T\(_1\) F 35-44 MA Employed C1 5-10 5-10 20%-40%
T\(_2\) M 35-44 MA Employed C1 10-15 10-15 20%-40%
T\(_3\) M 35-44 High school Employed B2 2-5 2-5 20%-40%
Vietnamese T\(_1\) F 25-34 MA Employed C2 10-15 5-10 40%-60%
T\(_2\) F 25-34 BA Freelancer C1 5-10 < 2 20%-40%
T\(_3\) F 25-34 MA Employed C1 2-5 < 2 < 20%
Table C.1: Subjects information for DivEMT. The last three columns represent respectively the number of years of professional experience as a translator (YoE), the number of years of experience with MT post-editing (PE YoE) and the % of work assignments requiring post-editing in the last 12 months (% PE) for each subject.

C.1.2 Translation Guidelines

An extract of the translation guidelines provided to the translators follows. The full guidelines are provided in the additional materials.

Fill in the pre-task questionnaire before starting the project. In this experiment, your goal is to complete the translation of multiple files in one of two possible translation settings. Please, complete the tasks on your own, even if you know another translator that might be working on this project. The translation setting alternates between texts, with each text requiring a single translation in the assigned setting. The two translation settings are:

  1. Translation from scratch. Only the source sentence is provided, you are to write the translation from scratch.
  2. Post-editing. The source sentence is provided alongside a translation produced by an MT system. You are to post-edit this MT output. Post-edit the text so you are satisfied with the final translation (the required quality is publishable quality). If the MT output is too time-consuming to fix, you can delete it and start from scratch. However, please do not systematically delete the provided MT output to give your own translation.

Important: All editing MUST happen in the provided PET interface: that is, working in other editors and copy-pasting the text back to PET is NOT ALLOWED, because it invalidates the experiment. This is easy to spot in the log data, so please avoid doing this. Complete the translation of all files sequentially, i.e. in the order presented in the tool. DO NOT SKIP files at your own convenience. Make sure that ALL files are translated when you deliver the tasks.

The aim is to produce publishable professional quality translations for both translation settings. Thus, please translate to your best abilities. You can return to the files and self-review as many times as you think it is necessary. Important: The time invested to translate is recorded while the active unit (sentence) is in editing mode (yellow background). Therefore:

  • Only start to translate when you are in editing mode (yellow background). In other words, do not start thinking how you will translate a sentence when the active unit is not yet in editing mode (green or red background).

  • Do not leave a unit in editing mode (yellow background) while you do something else. If you need to do something unrelated in the middle of a translation then go out of editing mode and come back to editing mode when you are ready to resume translating.

  • First you will be translating a warmup task, and then the main task. When you are translating each file, you can consult the source text by looking up the url in the Excel files that we have sent for reference.

In order to find the correct terminology for the translation you can consult any source in the Internet. Important: However, it is NOT ALLOWED to use any MT engine to find terms or alternatives to translations (such as Google Translate, DeepL, MS Translator or any MT engine available in your language). Using MT engines invalidates the experiment, and will be detected in the log data. Please fill-in the post-task questionnaire ONLY ONCE after completing all the translation tasks (both warmup and main tasks).

C.1.3 Details on Document Selection and Preprocessing

Document selection Table C.2 present the distribution of selected documents from the Flores-101 devtest split based on their domain and the number of sentences that compose them. The first goal in the selection process was to preserve a rough balance between the three categories while including mostly 4 and 5-sentence docs which are faster to edit in PET (no need to frequently close and reopen an editing window). Another objective of the selection was to minimize the chance of translators finding the translated version of the Wikipedia article from which documents were taken and copied from there, despite our guidelines. We thus scrape the articles from Wikipedia and assess the number of available translations. Among the selected documents, only a small subset has translations in other languages (see Figure C.1 top, an article can have multiple languages), mainly in Hebrew (14), Chinese (10), Spanish (7) and German (5) respectively. Considering the total number of translations for every article (Figure C.1 bottom), we see that roughly 75% of them (79 docs) have no translations. We consider this satisfactory as proof there should not be a large amount of possible copying involved, and we follow up on this evaluation by also ensuring that no repeated copy-paste patterns are present in keylogs after the warmup stage.

Type WN WV WB # Sent. # Words
3S 11 13 11 105 2168
4S 14 8 13 140 3214
5S 12 13 12 185 3826
Tot. 37 34 36 450 9626
Table C.2: Distribution of the selected DivEMT documents across sizes and Wikipedia categories. A Type value of NS stands for documents composed by N contiguous sentences, WN, WV and WB stand respectively for WikiNews, WikiVoyage and Wikibooks

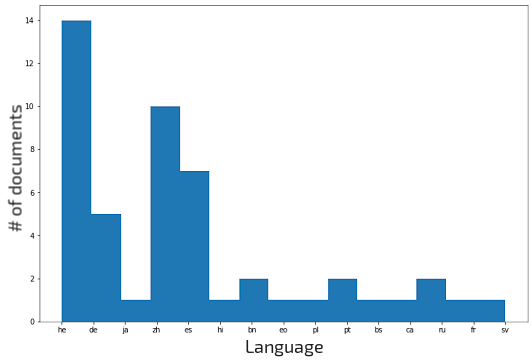

Figure C.1: Left: Distribution for the availability of documents selected for DivEMT in languages other than English. Right: Quantity of selected documents per number of available translations of Wikipedia.

Filtering of Outliers For our analysis of Section 8.4, we only use sentences with an editing time lower than 45 minutes, which was selected heuristically as a reasonably high threshold to allow for extensive searching and thinking. In the following, we present the identifiers of the sentences that were filtered out during this process. E.g. 54.1 means the first sentence of document 54, having item_id equal to flores101-main-541 in the dataset. Note that the sentences were outliers only for 2/6 languages and were all different, indicating no systematic issues in the sample: ARA: 54.1, 100.3, VIE: 3.1, 3.2, 24.3, 28.4, 33.1, 33.2, 40.3, 41.2, 50.3, 100.1, 102.1, 106.1, 107.2, 107.4. The 17 sentences were removed for all modalities and languages in the analysis of Section 8.4 to preserve the validity of our comparison, representing a loss of roughly 4% of the total available data, a tolerable amount for our analysis.

Fields Description Table C.3 presents the set of fields that were collected for every entry of the DivEMT dataset. The fields related to keystrokes, times, pauses, annotations and visit order were extracted from the event log of PET .per files, while edits information and other MT quality metrics were computed in a second moment with the help of widely-used libraries.

Field name Description
unit_id, flores_id, subject_id, task_type Identifiers for the item, respective FLORES-101 sentence, translator and translation mode.
src_text The original source sentence extracted from Wikinews, wikibooks or wikivoyage.
mt_text MT output sentence before post-editing, present only if task_type is 'pe'.
tgt_text Final sentence produced by the translator (either from scratch or post-editing mt_text)
aligned_edit Aligned visual representation of the machine translation and its post-edit with edit operations
edit_time Total editing time for the translation in seconds.
k_letter, k_digit, k_white, k_symbol, k_nav Number of keystrokes for various key types (letters, digits, keystrokes, whitespaces, punctuation, navigation keys) during the translation.
k_erease, k_copy, k_paste, k_cut, k_do Number of keystrokes for erease (backspace, cancel), copy, paste, cut and Enter actions during the translation.
k_total Total number of all keystroke categories during the translation.
n_pause_geq_N, len_pause_geq_N Number and length of pauses longer than 300ms and 1000ms during the translation.
num_annotations Number of times the translator focused the target sentence texbox during the session.
n_insert, n_delete, n_substitute, n_shift, tot_shifted_words, tot_edits, hter Granular editing metrics and overall HTER computed using the Tercom library.
cer Character-level HTER score computed between the MT and post-edited outputs.
bleu, chrf Sentence-level BLEU and ChrF scores between MT and post-edited fields computed using the SacreBLEU library with default parameters.
time_per_char, key_per_char, words_per_hour, words_per_minute Edit time per source character, expressed in seconds. Proportion of keys per character needed to perform the translation. Amount of source words translated or post-edited per hour/minute
subject_visit_order Id denoting the order in which the translator accessed documents in the interface.
Table C.3: Description of the main fields associated to every DivEMT data entry. An entry correspond to a translation in a specific modality (HT, PE\(_1\) or PE\(_2\)) for one of the six target languages

C.1.4 Other Measurements

Automatic Evaluation of NMT Systems The selection of systems used in this study was driven by a broader evaluation procedure covering more models, metrics and target languages. Table C.4 presents the overall results of our evaluation. We use HuggingFace’s transformers library (Wolf et al., 2020) for all neural models, using the default decoding settings without further fine-tuning. All metrics were computed using the default settings of SacreBLEU (Post, 2018) and comet (Rei et al., 2020).

System BLEU chrF2 TER chrF2++ COMET
Arabic M2M100 19.2 50.9 69.2 47 0.417
MarianNMT 22.7 54.2 64.7 50.4 0.483
mBART-50 17 48.5 69.1 44.8 0.452
GTrans 34.1 65.6 52.8 61.9 0.737
Dutch M2M100 21.3 52.9 66.1 49.8 0.405
MarianNMT 25 56.9 62.5 53.8 0.543
mBART-50 22.6 53.9 63.7 50.9 0.532
DeepL 28.7 59.5 59.5 56.6 0.67
GTrans 29.1 60 58.5 57.1 0.667
Indonesian M2M100 35.9 63.1 47.3 60.8 0.614
MarianNMT 38.5 65.6 46.5 63.3 0.671
mBART-50 35.9 63.3 47.7 61.1 0.706
GTrans 51.5 73.6 34.5 71.9 0.894
Italian M2M100 23.6 53.9 63.2 51 0.51
MarianNMT 27.5 57.6 58.9 54.8 0.642
mBART-50 24.4 54.7 61.2 51.8 0.648
DeepL 33 61 54 58.5 0.795
GTrans 32.8 61.4 53.6 58.8 0.781
Japanese M2M100 24.5 32.2 123.3 26 0.389
mBART 27.1 35.4 123 28.3 0.538
DeepL 41.3 46.8 108 37 0.75
GTrans 38.4 44.7 101.5 33.9 0.683
Polish M2M100 16.1 46.5 74.2 43.1 0.486
MarianNMT 19.3 49.9 70.5 46.6 0.648
mBART-50 17.4 48.2 72.4 44.9 0.603
DeepL 24 54.3 66.4 51.1 0.832
GTrans 24.4 54.6 64.6 51.4 0.804
Russian M2M100 22.5 51.1 65.6 48.1 0.427
MarianNMT 25.4 53.5 64.3 50.7 0.537
mBART 24.8 52.6 63.7 49.7 0.541
DeepL 35.9 61.8 53.3 59.3 0.79
GTrans 33 60.5 55.2 57.7 0.731
Turkish M2M100 20.3 53.9 65.2 50.1 0.686
MarianNMT 26.3 59.8 58.8 55.8 0.881
mBART-50 18.8 52.7 67.5 48.7 0.755
GTrans 35 65.5 50.4 62.2 1
Ukrainian M2M100 21.9 51.4 65.8 48.3 0.463
MarianNMT 20 48.8 69.2 45.7 0.427
mBART-50 21.9 50.7 67.9 47.7 0.587
GTrans 31.1 59.8 55.9 56.8 0.758
Vietnamese M2M100 33.3 52.3 52.4 52.1 0.43
MarianNMT 26.7 45.7 60.2 45.6 0.117
mBART-50 34.7 54 50.7 53.8 0.608
GTrans 45.1 61.9 41.8 61.9 0.724
Table C.4: Automatic MT quality of all evaluated NMT systems on all tested languages in the English-to-XX setting, using the FLORES-101 full devtest for evaluation. Besides mBART-50 and Google Translate (GTrans), we also evaluate a set of bilingual Transformer-based NMT models trained with MarianNMT (Tiedemann and Thottingal, 2020), the DeepL industrial MT system and the multilingual M2M-100 418M model (Fan et al., 2021). Best overall and open-source only performances are highlighted.

Inter-subject Variability in Translation Times Although the variability across different subjects working on the same language directions is not the main concern of our investigation, we produce Figure C.2 (an expanded version of Figure 8.2) to visualize the inter-subject variability for translation times. We observe that the variability across different translators is more pronounced when translating from scratch and that the overall trend of speed improvements associated with PE is mostly preserved (with few exceptions related to the PE\(_2\) modality).

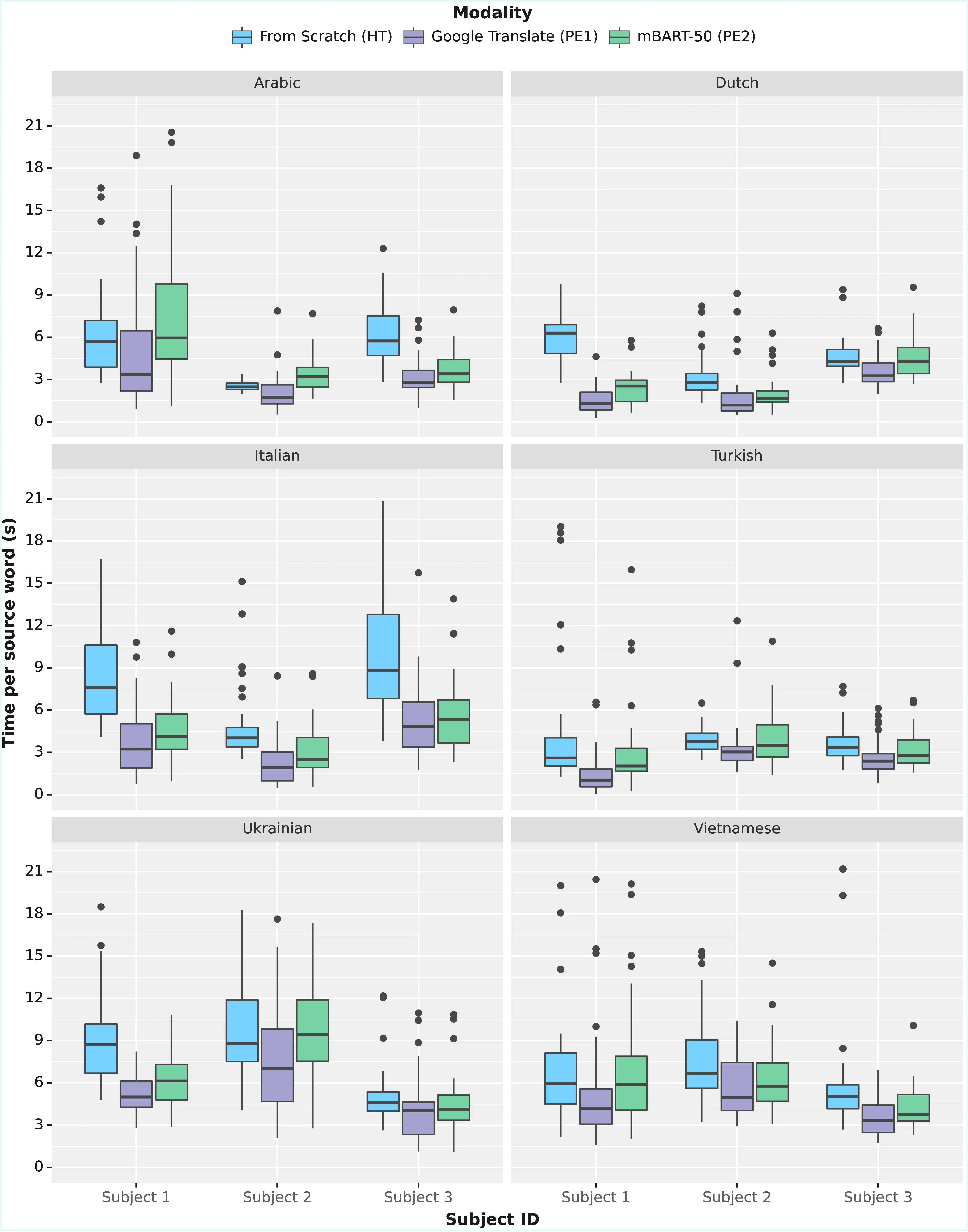

Figure C.2: Time per processed source word across languages, subjects and translation modalities, measured in seconds. Each point represents a document containing 3–5 sentences translated by a subject in one of the languages, with higher scores representing slower editing.
English
Inland waterways can be a good theme to base a holiday around.
Arabic
HT يمكن أن تكون الممرات المائية الداخلية خياراً جيداً لتخطيط عطلة حولها.
PE1 mt: يمكن أن تكون الممرات المائية الداخلية موضوعًا جيدًا لإقامة عطلة حولها
pe: يمكن** أن تكون الممرات المائية الداخلية مظهرًا جيدًا لإقامة عطلة حولها
PE2 mt: يمكن أن تكون السكك الحديدية الداخلية موضوعًا جيدًا لإقامة عطلة حول
pe: قدتكونالممراتالمائيةالداخليةمكانًاجيدًالقضاءعطلةحولها
Dutch
HT Binnenlandse waterwegen kunnen een goed thema zijn voor een vakantie.
PE1 MT: De binnenwateren kunnen een goed thema zijn om een vakantie omheen te baseren.
PE: Binnenwateren kunnen een goede vakantiebestemming zijn.
PE2 MT: Binnenwaterwegen kunnen een goed thema zijn om een vakantie rond te zetten.
PE: Binnenwaterwegen kunnen een goed thema zijn om een vakantie rond te organiseren.
Italian
HT I corsi d'acqua dell'entroterra possono essere un ottimo punto di partenza da cui organizzare una vacanza.
PE1 MT: Trasporto fluviale può essere un buon tema per basare una vacanza in giro.
PE: I canali di navigazione interna possono essere un ottimo motivo per cui intraprendere una vacanza.
PE2 MT: I corsi d’acqua interni possono essere un buon tema per fondare una vacanza.
PE: I corsi d’acqua interni possono essere un buon tema su cui basare una vacanza.
Turkish
HT İç bölgelerdeki su yolları, tatil planı için iyi bir tema olabilir.
PE1 MT: İç su yolları, bir tatili temel almak için iyi bir tema olabilir.
PE: İç su yolları, bir tatil planı yapmak için iyi bir tema olabilir.
PE2 MT: İç suyolları, tatil için uygun bir tema olabilir.
PE: İç sular tatil için uygun bir tema olabilir.
Ukrainian
HT Можна спланувати вихідні, взявши за основу подорож внутрішніми водними шляхами.
PE1 MT: Внутрішні водні шляхи можуть стати гарною темою для відпочинку навколо.
PE: Внутрішні водні шляхи можуть стати гарною темою для проведення вихідних.
PE2 MT: Водні шляхи можуть бути хорошим об ’єктом для базування відпочинку навколо.
PE: Місцевість навколо внутрішніх водних шляхів може бути гарним вибором для організації відпочинку.
Vietnamese
HT Du lịch trên sông có thể là một lựa chọn phù hợp cho kỳ nghỉ.
PE1 MT: Đường thủy nội địa có thể là một chủ đề hay để tạo cơ sở cho một kỳ nghỉ xung quanh.
PE: Đường thủy nội địa có thể là một ý tưởng hay để lập kế hoạch cho kỳ nghỉ.
PE2 MT: Các tuyến nước nội địa có thể là một chủ đề tốt để xây dựng một kì nghỉ.
PE: Du lịch bằng đường thủy nội địa là một ý tưởng nghỉ dưỡng không tồi.
Table C.5: An example sentence (81.1) from the DivEMT corpus, with the English source and all output modalities for all target languages, including intermediate machine translations (MT) and subsequent post-editings (PE). Colors denote insertions, deletions, substitutions and shifts computed with Tercom (Snover et al., 2006).
English
The Internet combines elements of both mass and interpersonal communication.
Arabic
HT يجمع الإنترنت بين عناصر وسائل الاتصال العامة والشخصية على حدٍ سواء
PE1 mt: تجمع الإنترنت بين عناصر الاتصال الجماهيري والشخصي
pe: يجمع الإنترنت بين عناصر الاتصال الجماهيري والشخصي
PE2 mt: إنترنت تجمع عناصر التواصل الجماعي والتواصل الشخصي
pe: تجمع شبكة الإنترنت عناصر التواصل الجماعي والتواصل الشخصي
Dutch
HT Het internet combineert elementen van zowel massa- en intermenselijke communicatie.
PE1 MT: Het internet combineert elementen van zowel massa- als interpersoonlijke communicatie.
PE: Het internet combineert elementen van zowel massa- als interpersoonlijke communicatie.
PE2 MT: Het internet combineert elementen van massa- en interpersoonlijke communicatie.
PE: Het internet combineert elementen van massa- en interpersoonlijke communicatie.
Italian
HT Internet combina elementi di comunicazione sia di massa sia interpersonale.
PE1 MT: Internet combina elementi di comunicazione di massa e interpersonali.
PE: Internet combina elementi di comunicazione di massa e interpersonale.
PE2 MT: Internet combina elementi di comunicazione di massa e interpersonale.
PE: Internet combina elementi di comunicazione di massa e interpersonale.
Turkish
HT İnternet hem kitlesel hem de bireysel iletişim öğelerini birleştiriyor.
PE1 MT: İnternet, hem kitle hem de kişiler arası iletişimin unsurlarını birleştirir.
PE: İnternet, hem kitleler hem de kişiler arası iletişimin unsurlarını birleştirir.
PE2 MT: İnternet hem kitlesel hem de kişisel iletişim unsurlarını birleştiriyor.
PE: İnternet hem kitlesel hem de kişisel iletişim unsurlarını birleştiriyor.
Ukrainian
HT В інтернеті поєднуються елементи групового спілкування та особистого спілкування.
PE1 MT: Інтернет поєднує в собі елементи як масового, так і міжособистісного спілкування.
PE: Інтернет поєднує в собі елементи як масового, так і міжособистісного спілкування.
PE2 MT: Інтернет об ’єднує як масову, так і міжлюдську комунікацію.
PE: Інтернет поєднує в собі елементи як групової, так і особистої комунікації.
Vietnamese
HT Internet là nơi tổng hợp các yếu tố của cả phương tiện truyền thông đại chúng và giao tiếp liên cá nhân.
PE1 MT: Internet kết hợp các yếu tố của cả giao tiếp đại chúng và giao tiếp giữa các cá nhân.
PE: Internet kết hợp các yếu tố của cả truyền thông đại chúng và giao tiếp giữa các cá nhân.
PE2 MT: Internet kết hợp những yếu tố của sự giao tiếp quần chúng và giao tiếp giữa người với người.
PE: Internet kết hợp những yếu tố của cả việc giao tiếp đại chúng và giao tiếp cá nhân.
Table C.6: An example sentence (29.2) from the DivEMT corpus, with the English source and all output modalities for all target languages, including intermediate machine translations (MT) and subsequent post-editings (PE). Colors denote insertions, deletions, substitutions and shifts computed with Tercom (Snover et al., 2006).
Subject Coefficient
ara_t1 0.281
ara_t2 -0.384
ara_t3 -0.103
nld_t1 0.001
nld_t2 -0.459
nld_t3 0.458
ita_t1 0.086
ita_t4 0.350
ita_t5 -0.436
tur_t1 -0.381
tur_t2 0.272
tur_t3 0.109
ukr_t1 0.077
ukr_t2 0.314
ukr_t3 -0.391
vie_t1 0.012
vie_t2 0.176
vie_t3 -0.188
Table C.7: Coefficients of the random intercept related to the subject_id variable, representing the identity of the translator performing the translation.



C.1.5 Data Filtering and Feature Significance

We log-transform the dependent variable, edit time in seconds, given its long right tail. The models are built by adding one element at a time, and checking whether such addition leads to a significantly better model with AIC (i.e. if the score gets reduced by at least 2). Our random effects structure includes random intercepts for different segments (nested with documents) and translators, as well as a random slope for modality over individual segments. We start with an initial model that just includes the two random intercepts (by-translator and by-segment) and proceed by (i) finding significance for nested document/segment random effect; (ii) adding fixed predictors one by one; (iii) adding interactions between fixed predictors; and (iv) adding the random slopes.1 From this sequential procedure, we obtain the resulting model. When checking the homoscedasticity and normality of residuals assumptions (Figure C.3 and Figure C.4), we find the latter is not fulfilled. Consequently, we remove data points for which observations deviate by more than 2.5 standard deviations from the predicted value by the model (2.4% of the data) and refit the best model on this subset, in order to find out whether any of the effects were due to these outliers. The resulting trends do not change significantly in this final model, in which residuals are normally distributed. As a final sanity check, in Table C.7 we measure the effect of subject identity on edit times and find no systematic patterns across languages.

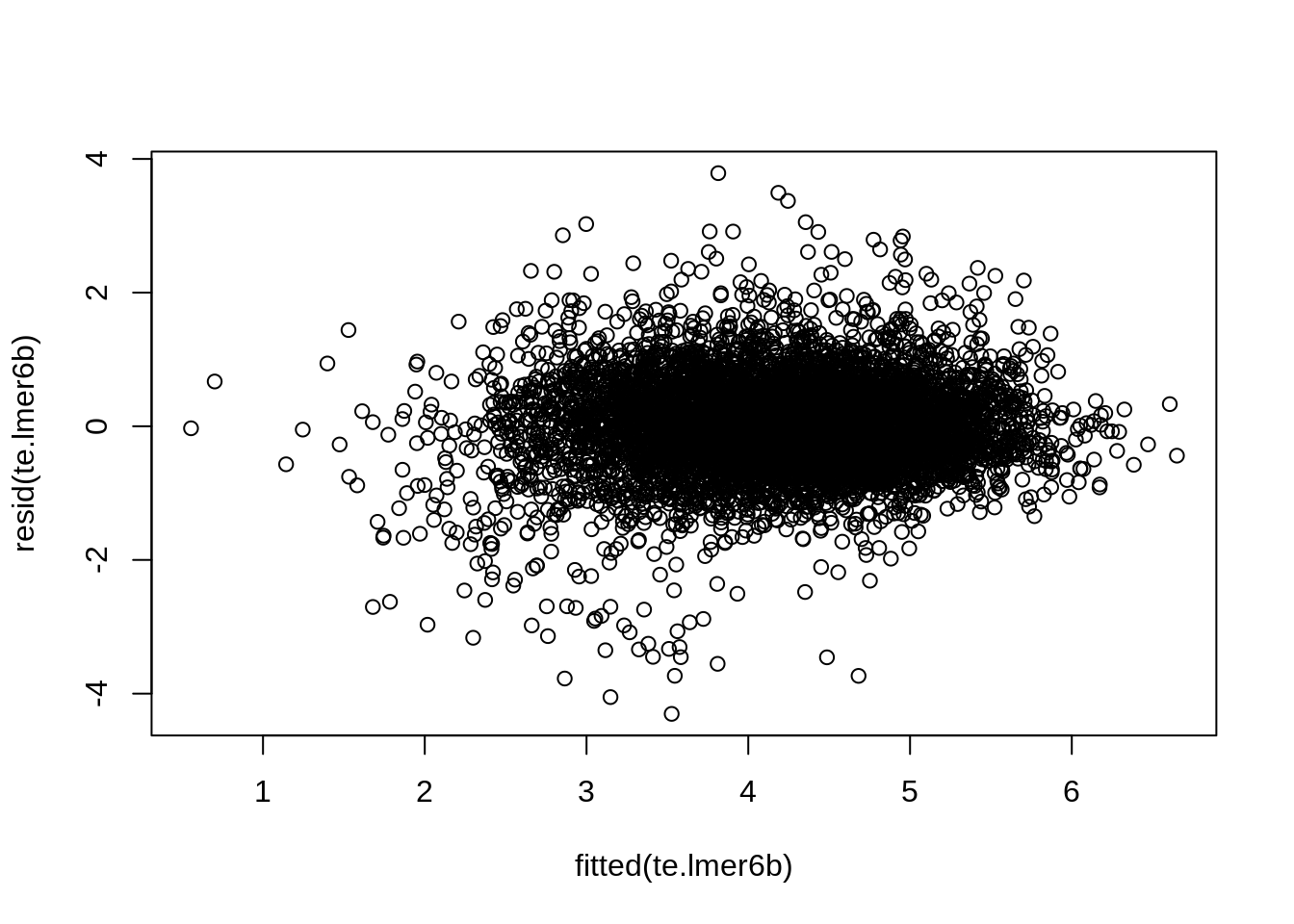

Figure C.3: Residuals of the final LMER model, used to verify the heteroscedasticity assumption.

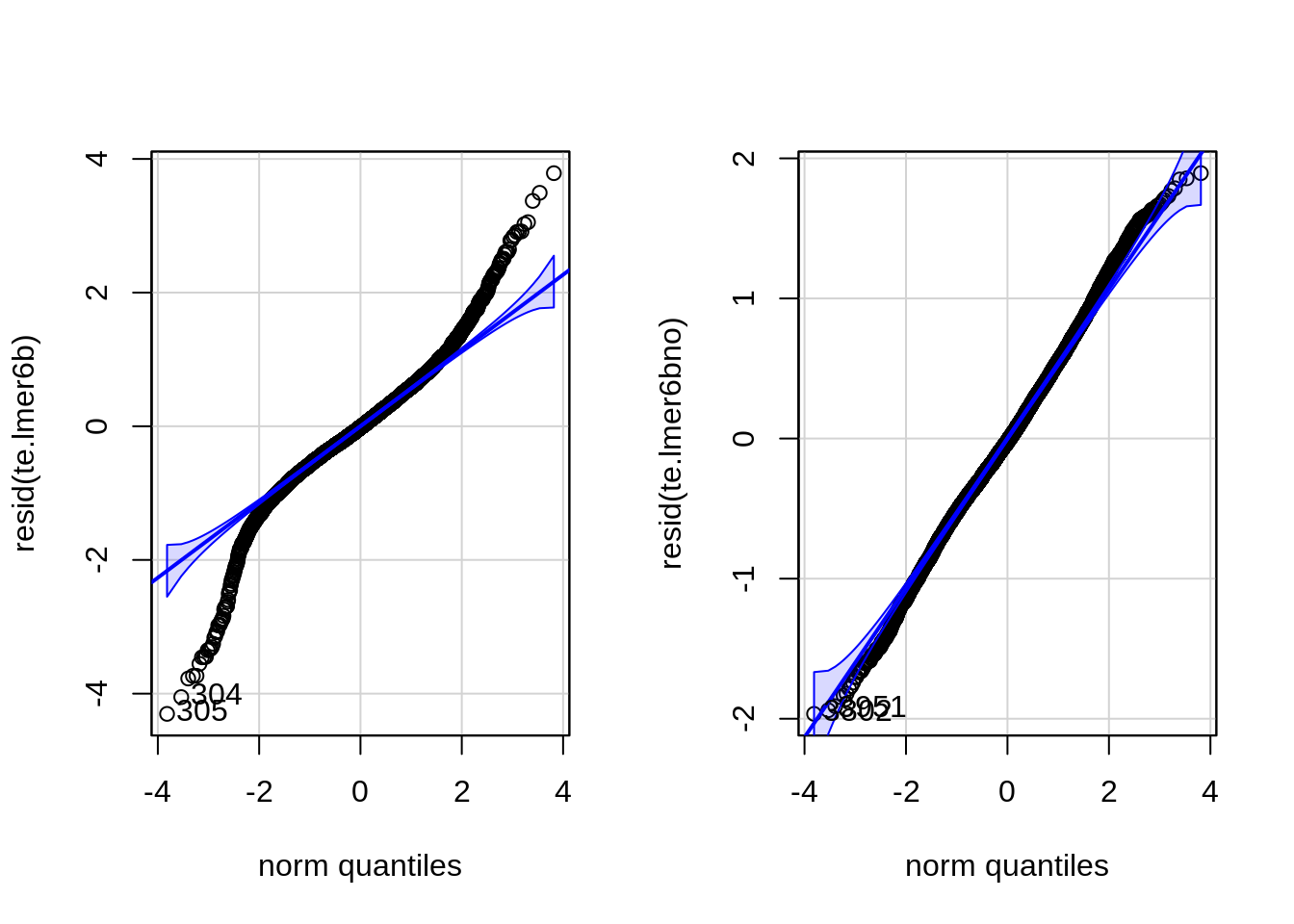

Figure C.4: Quantile-quantile plot before and after the removal of outliers when fitting the LMER model, used to verify the normality assumption.

C.2 Word-level Quality Estimation for Machine Translation Post-editing

C.2.1 Filtering Details for QE4PE Data

  1. Documents should contain between 4 and 10 segments, each containing 10-100 words (959 docs). This ensures that all documents are roughly uniform in terms of size and complexity to maintain a steady editing flow Section 9.2.5.
  2. The average segment-level QE score predicted by XCOMET-XXL is between 0.3 and 0.95, with no segment below 0.3 (429 docs). This forces segments to have a decent but still imperfect quality, excluding fully wrong translations.
  3. At least 3 and at most 20 errors spans per document, with no more than 30% of words in the document being highlighted (351 docs). This avoids overwhelming the editor with excessive highlighting, while still ensuring error presence.

The same heuristics were applied to both translation directions, selecting only documents matching our criteria in both cases.

C.2.2 Additional Details and Statistics

Identifier Job Eng. Lvl Trans. YoE Post-edit YoE Post-edit % Adv. CAT YoE MT good/bad for: Post-edit comment
ita-nohigh-fast FL (FT) C1 2-5 2-5 100% Often G: Productivity, quality, repetitive work. PE better than from scratch when consistency is needed.
ita-nohigh-avg FL (PT) C1 >10 <2 20% Often G: Productivity, repetitive work. B: less creative. PE produces unnatural sentences.
ita-nohigh-slow FL (PT) C2 >10 2-5 40% Sometimes G: creativity. Good for time saving.
ita-oracle-fast FL (FT) C2 5-10 2-5 60% Sometimes G: Productivity, repetitive work. B: less creative. Good for productivity, humans always needed.
ita-oracle-avg FL (FT) C2 5-10 5-10 20% Always G: productivity, terminology. Good for tech docs, not for articulated texts.
ita-oracle-slow FL (FT) C2 2-5 5-10 80% Always G: Productivity, repetitive work. Useful for consistency and productivity, unless creativity is needed.
ita-unsup-fast FL (FT) C1 <2 <2 60% Often G: Productivity, terminology. B: less creative. Humans will always be needed in translation.
ita-unsup-avg FL (FT) C1 >10 2-5 60% Often G: Productivity, repetitive work. B: less creative. An opportunity for translators.
ita-unsup-slow FL (FT) C1 5-10 5-10 80% Always G: Productivity, repetitive work. B: less creative. Good for focusing on detailed/cultural/creative aspects of translations.
ita-sup-fast FL (PT) C1 >10 2-5 40% Often G: Productivity, quality, repetitive work, terminology. Improves quality and consistency.
ita-sup-avg FL (FT) C1 >10 5-10 100% Always G: Productivity, repetitive work. B: less creative. Consistency improved, but less variance means less creativity.
ita-sup-slow FL (FT) C1 >10 2-5 20% Always G: Productivity, creativity, quality, repetitive work. Good for productivity, but does not work on creative texts.
nld-nohigh-fast FL (FT) C1 >10 >10 40% Often G: Productivity, terminology. B: creativity. Widespread but still too literal
nld-nohigh-avg FL (FT) C2 >10 2-5 40% Always G: Repetitive work. B: creativity, often wrong, worse quality. Increase in productivity to save on costs brings down quality.
nld-nohigh-slow FL (FT) C2 >10 5-10 100% Often G: Creativity, quality, repetitive work, terminology. Working with MT can be creative beyond PE.
nld-oracle-fast FL (FT) C1 5-10 5-10 80% Always G: Productivity, quality, repetitive work, terminology. Good for tech docs and repetition.
nld-oracle-avg FL (FT) C2 >10 2-5 40% Always B: less creative, less productive, often wrong Bad MT is worse than no MT for specialized domains.
nld-oracle-slow FL (FT) C2 >10 2-5 60% Often G: Productivity, repetitive work. B: cultural references. More productivity at the cost of idioms and cultural factors.
nld-unsup-fast FL (FT) C2 5-10 2-5 40% Often G: all. B: often wrong, worse quality. PE makes you less in touch with the texts and often poorly paid.
nld-unsup-avg FL (FT) C2 5-10 2-5 60% Sometimes G: Productivity, quality, repetitive work, terminology. B: wrong. Practical but less effective for longer passages.
nld-unsup-slow FL (FT) C2 >10 2-5 40% Always G: repetitive work, productivity, terminology Improves consistency and productivity if applied well.
nld-sup-fast FL (FT) C2 >10 5-10 60% Often G: repetitive work, creativity, terminology Useful, but worries about job loss
nld-sup-avg FL (FT) C2 >10 10 60% Sometimes G: terminology, creativity Useful for inspiration on better translations
nld-sup-slow FL (FT) C1 5-10 5-10 80% Always G: repetitive work, productivity Better productivity at the cost of creativity.
Table C.8: Sample of pre-task questionnaire results. YoE = years of experience. FL = Freelance, PT = Part-time, FT = Full-time. PE = Post-editing. G = Good, B = Bad.
Highlights statements
Identifier MT good / fluent / accurate High. accurate / useful Interface clear Task difficult \(\uparrow\) Speed? \(\uparrow\) Quality? \(\uparrow\) Effort? \(\uparrow\) Influence? \(\uparrow\) Spot errors? \(\uparrow\) Enjoy?
ita-nohigh-fast 4 / 0.8 / 0.8 - / - 5 1 - - - - - -
ita-nohigh-avg 3 / 0.6 / 0.4 - / - 2 4 - - - - - -
ita-nohigh-slow 3 / 0.8 / 0.8 - / - 1 5 - - - - - -
ita-oracle-fast 5 / 0.4 / 0.8 4 / 4 4 5 5 2 1 1 1 4
ita-oracle-avg 3 / 0.4 / 0.6 2 / 1 2 3 1 1 4 1 1 1
ita-oracle-slow 3 / 0.6 / 0.6 2 / 2 2 5 1 1 1 1 4 1
ita-unsup-fast 3 / 0.8 / 0.6 3 / 2 4 5 3 3 3 2 2 2
ita-unsup-avg 3 / 0.6 / 0.6 3 / 3 3 5 2 3 2 1 1 3
ita-unsup-slow 3 / 0.4 / 0.6 2 / 2 3 4 2 2 3 3 4 4
ita-sup-fast 3 / 0.4 / 0.4 2 / 1 2 2 1 1 3 1 2 2
ita-sup-avg 3 / 0.4 / 0.4 2 / 2 3 5 3 2 4 3 3 4
ita-sup-slow 3 / 0.6 / 0.6 2 / 2 1 2 2 1 1 4 4 1
nld-nohigh-fast 3 / 0.2 / 0.4 - / - 4 4 - - - - - -
nld-nohigh-avg 2 / 0.4 / 0.6 - / - 4 5 - - - - - -
nld-nohigh-slow 2 / 0.2 / 0.4 - / - 3 5 - - - - - -
nld-oracle-fast 3 / 0.6 / 0.6 2 / 1 3 2 2 2 2 1 1 1
nld-oracle-avg 3 / 0.8 / 0.6 4 / 3 3 4 3 3 3 3 2 3
nld-oracle-slow 3 / 0.6 / 0.4 3 / 1 3 4 1 1 1 1 1 3
nld-unsup-fast 3 / 0.6 / 0.8 3 / 2 4 4 1 3 1 1 2 1
nld-unsup-avg 3 / 0.6 / 0.6 4 / 3 2 4 3 3 4 3 2 3
nld-unsup-slow 1 / 0.4 / 0.4 2 / 4 1 4 4 4 3 2 2 3
nld-sup-fast 3 / 0.6 / 0.4 2 / 2 3 5 1 1 5 3 1 1
nld-sup-avg 3 / 0.4 / 0.6 2 / 2 2 4 1 1 1 1 2 3
nld-sup-slow 5 / 0.8 / 1 4 / 3 2 5 3 3 2 2 2 4
Table C.9: Sample of post-task questionnaire results. Statements use a 1–Strongly disagree to 5–Strongly agree scale.
Target: Seg. Edit Time, 5s bins from 0 to 600s
Feature Coeff. Sig.
(Intercept) 1.67 ***
MT Num. Chars 2.42 ***
Highlight Ratio % 1.59 ***
Target Lang.: ITA -0.34 ***
Text Domain: Social 0.31 ***
Oracle Highlight -0.79 .
Sup. Highlight 0.02
Unsup. Highlight -0.07
MT XCOMET QE Score 0.01 ***
ITA:Oracle 0.91 ***
ITA:Sup. 1.18 ***
ITA:Unsup. 0.48 ***
Social:Oracle -0.19 **
Social:Sup. -0.34 ***
Social:Unsup. -0.22 ***
Highlight Ratio:Oracle -0.83 *
Highlight Ratio:Sup. -1.33 ***
Edit Order Random Factors
Translator ID
Segment ID
Table C.10: Details for the negative binomial mixed-effect model used for the productivity analysis of Section 9.3.1.



Target: % of edited characters in a segment (0-100).
Feature Coeff. Sig.
(Intercept) 21.0 ***
MT Num. Chars 10.3 ***
Highlight Ratio % 7.1 ***
Target Lang.: ITA -9.9 ***
Text Domain: Social 10.9 ***
Oracle Highlight -5.2
Sup. Highlight -4.7
Unsup. Highlight -0.9
ITA:Oracle 12.2 ***
ITA:Sup. 15.9 ***
ITA:Unsup. 13.4 ***
Social:Oracle 3.5 ***
Social:Sup. -0.4
Social:Unsup. 2.1 **
Highlight Ratio:Oracle -0.18
Highlight Ratio:Sup. -1.78 ***
Edit Order Random Factors
Translator ID
Segment ID
MT Num. Chars Zero-Inflation Factors
Target Lang
Text Domain
Translator ID
Table C.11: Details for the zero-inflated negative binomial mixed-effect model used for the editing analysis of Section 9.3.2. The model achieves an RMSE of 0.11 and an \(R^2\) of 0.98.
Modalities en→it en→nl Both
Bio Social Both Bio Social Both Bio Social Both
Oracle and Sup. 0.17 0.32 0.25 0.38 0.29 0.34 0.26 0.29 0.29
Unsup. 0.14 0.30 0.20 0.31 0.27 0.28 0.22 0.29 0.24
Sup. and Oracle 0.19 0.31 0.26 0.30 0.26 0.29 0.24 0.29 0.28
Unsup. 0.19 0.33 0.25 0.28 0.24 0.25 0.24 0.29 0.25
Unsup. and Oracle 0.22 0.32 0.27 0.35 0.30 0.33 0.28 0.31 0.30
Sup. 0.22 0.37 0.30 0.39 0.27 0.33 0.30 0.31 0.32
Table C.12: Average highlight agreement proportion between different modalities across language pairs and domains (Section 9.3.2). Scores are normalized to account for the relative frequency of highlight modalities compared to the mean highlight frequency for the current language and domain combination.
Domain Speed \(P(H)\) \(P(E)\) \(P(E|H)\) \(P(E|\neg H)\) \(\Lambda_H(E)\) \(P(H|E)\) \(P(H|\neg E)\) \(\Lambda_E(H)\)
en→it
Biomed. Fast .09 .04 / .01 .12 / .02 .03 / .01 4.0 / 2.0 .30 / .27 .08 / .11 3.7 / 2.4
Avg. .10 / .05 .27 / .12 .09 / .04 3.0 / 3.0 .22 / .30 .07 / .11 3.1 / 2.7
Slow .09 / .02 .21 / .04 .08 / .01 2.6 / 4.0 .19 / .26 .07 / .11 2.7 / 2.3
Social Fast .14 .11 / .07 .30 / .20 .07 / .04 4.2 / 5.0 .40 / .52 .11 / .16 3.6 / 3.2
Avg. .23 / .14 .48 / .32 .18 / .10 2.6 / 3.2 .30 / .42 .09 / .15 3.3 / 2.8
Slow .17 / .05 .39 / .14 .14 / .03 2.7 / 4.6 .31 / .54 .11 / .17 2.8 / 3.1
en→nl
Biomed. Fast .14 .03 / .02 .11 / .05 .02 / .01 5.5 / 5.0 .48 / .61 .13 / .18 3.6 / 3.3
Avg. .11 / .19 .20 / .30 .10 / .17 2.0 / 1.7 .25 / .29 .13 / .16 1.9 / 1.8
Slow .12 / .10 .26 / .23 .10 / .07 2.6 / 3.2 .29 / .42 .12 / .16 2.4 / 2.6
Social Fast .12 .06 / .07 .19 / .21 .04 / .04 4.7 / 5.2 .37 / .47 .10 / .13 3.7 / 3.6
Avg. .17 / .32 .32 / .48 .15 / .29 2.1 / 1.6 .22 / .23 .10 / .12 2.2 / 1.9
Slow .18 / .18 .38 / .40 .15 / .14 2.5 / 2.8 .25 / .34 .09 / .11 2.7 / 3.0
Table C.13: Highlighting (\(H\)) and editing (\(E\)) statistics for each domain, and translation direction across translator speeds (\(n = 4\) post-editors per combination, regardless of highlight modality). Values after slashes are adjusted by projecting highlights of the specified modality over edits from No Highlight translators to estimate highlight-induced editing biases (Section 9.3.2).
Domain Modality \(P(H)\) \(P(E)\) \(P(E|H)\) \(P(E|\neg H)\) \(\Lambda_H(E)\) \(P(H|E)\) \(P(H|\neg E)\) \(\Lambda_E(H)\)
en→it
Biomed. Random .12 - - / .02 - / .02 - / 1.0 - / .11 - / .13 - / 0.8
No High. - .02 - - - - - -
Oracle .08 .07 .26 / .08 .05 / .02 5.2 / 4.0 .30 / .26 .06 / .08 5.0 / 3.2
Unsup. .16 .10 .18 / .06 .08 / .02 2.2 / 3.0 .29 / .36 .14 / .15 2.0 / 2.4
Sup. .11 .12 .18 / .05 .11 / .02 1.6 / 2.5 .16 / .23 .10 / .10 1.6 / 2.3
Social Random .20 - - / .09 - / .09 - / 1.0 - / .21 - / .20 - / 1.0
No High. - .09 - - - - - -
Oracle .25 .20 .42 / .23 .13 / .04 3.2 / 5.7 .52 / .66 .18 / .21 2.8 / 3.1
Unsup. .17 .18 .35 / .19 .14 / .07 2.5 / 2.7 .33 / .37 .14 / .15 2.3 / 2.4
Sup. .15 .21 .38 / .23 .18 / .06 2.1 / 3.8 .27 / .39 .11 / .12 2.4 / 3.2
en→nl
Biomed. Random .17 - - / .12 - / .10 - / 1.2 - / .19 - / .17 - / 1.1
No High. - .10 - - - - - -
Oracle .21 .08 .21 / .20 .05 / .08 4.2 / 2.5 .52 / .41 .18 / .18 2.8 / 2.2
Unsup. .23 .09 .17 / .17 .07 / .08 2.4 / 2.1 .43 / .38 .21 / .21 2.0 / 1.8
Sup. .12 .08 .20 / .21 .06 / .09 3.3 / 2.3 .30 / .25 .11 / .11 2.7 / 2.2
Social Random .16 - - / .22 - / .19 - / 1.1 - / .19 - / .16 - / 1.1
No High. - .19 - - - - - -
Oracle .19 .12 .33 / .39 .07 / .15 4.7 / 2.6 .54 / .39 .15 / .15 3.6 / 2.6
Unsup. .15 .13 .25 / .33 .11 / .17 2.2 / 1.9 .30 / .26 .13 / .12 2.3 / 2.1
Sup. .12 .10 .30 / .36 .08 / .17 3.7 / 2.1 .36 / .23 .10 / .10 3.6 / 2.3
Table C.14: Highlighting (\(H\)) and editing (\(E\)) statistics for each domain, modality and translation direction combination (\(n = 3\) post-editors per combination). Values after slashes are adjusted by projecting highlights of the specified modality over edits from No Highlight translators to estimate highlight-induced editing biases (Section 9.3.2). A Random baseline is added by projecting random highlights matching the average frequency over all modalities for specific domain and translation direction settings.
ID Source text Target text Proposed correction Error Cat. Severity Score
9-1 Specifying peri- and postnatal factors in children born very preterm (VPT) that affect later outcome helps to improve long-term treatment. Specificare i fattori peri- e postnatali nei bambini nati molto pretermine (VPT) che influenzano il risultato successivo aiuta a migliorare il trattamento a lungo termine. Specificare i fattori peri- e postnatali nei bambini nati molto pretermine (VPT, Very Preterm) che influenzano il risultato successivo aiuta a migliorare il trattamento a lungo termine. Readability Minor 90
9-2 To enhance the predictability of 5-year cognitive outcome by perinatal, 2-year developmental and socio-economic data. Migliorare la prevedibilità del risultato cognitivo a 5 anni mediante dati perinatali, di sviluppo e socioeconomici a 2 anni. 100
9-3 5-year infants born VPT were compared to 34 term controls. I neonati di 5 anni nati VPT sono stati confrontati con 34 nati a termine come controllo. I neonati di 5 anni nati VPT sono stati confrontati con 34 controlli a termine. Mistranslation Minor 70
9-4 The IQ of 5-year infants born VPT was 10 points lower than that of term controls and influenced independently by preterm birth and SES. Il QI dei bambini di 5 anni nati VPT era di 10 punti inferiore a quello dei nati a termine di controllo, e influenzato indipendentemente dalla nascita pretermine e dai dati SES. Il QI dei bambini di 5 anni nati VPT era di 10 punti inferiore a quello dei nati a termine e influenzato indipendentemente dalla nascita pretermine e dallo stato socioeconomico (SES). Mistranslation Minor 70
Il QI dei bambini di 5 anni nati VPT era di 10 punti inferiore a quello dei nati a termine di controllo, e influenzato indipendentemente dalla nascita pretermine e dai dati SES. Il QI dei bambini di 5 anni nati VPT era di 10 punti inferiore a quello dei nati a termine e influenzato indipendentemente dalla nascita pretermine e dallo stato socioeconomico (SES). Untranslated Minor
52-1 But with less than 3 months to go for that, I feel I'm not ready yet, but having never taken it, I have nothing to compare it to besides colleagues' advice. Ma con meno di 3 mesi per farlo, sento di non essere ancora pronto, ma non l’ho mai preso, non ho nulla con cui confrontarlo oltre ai consigli dei colleghi. Ma con meno di 3 mesi per farlo, sento di non essere ancora pronto, e non avendolo mai fatto, non ho nulla con cui confrontarlo oltre ai consigli dei colleghi. Mistranslation Major 30
52-2 Without knowing what I know, they can't know if I'm actually ready yet, but many of them are pushing me to sign up for it. Senza sapere quello che so, non possono sapere se sono ancora pronta, ma molti di loro mi stanno spingendo a iscrivermi. Se non hanno idea di quanto sappia, non possono sapere se sono davvero pronta, ma molti di loro mi stanno spingendo a iscrivermi. Readability Minor 60
Senza sapere quello che so, non possono sapere se sono ancora pronta, ma molti di loro mi stanno spingendo a iscrivermi. Se non hanno idea di quanto sappia, non possono sapere se sono davvero pronta, ma molti di loro mi stanno spingendo a iscrivermi. Mistranslation Minor
52-3 I'm close... I just don't know if I'm 2 months study close. Ci sono quasi… solo che non so se ce la farò in soli 2 mesi, ma penso di potercela fare. Ci sono quasi... solo che non so se ce la farò in soli 2 mesi. Addition Major 20
Table C.15: QA interface with cropped examples of biomedical and social media texts with error annotations (Biomedical: post-edited segments with No Highlight; Social media: MT outputs).
Figure C.5: Top: Post-editing rate across highlight modalities, domains and directions. Bottom: Proportion of edits in highlighted spans across highlight modalities. *** \(=p<0.001\), ** \(=p<0.01\), * \(=p<0.05\), ns \(=\) not significant with Bonferroni correction.

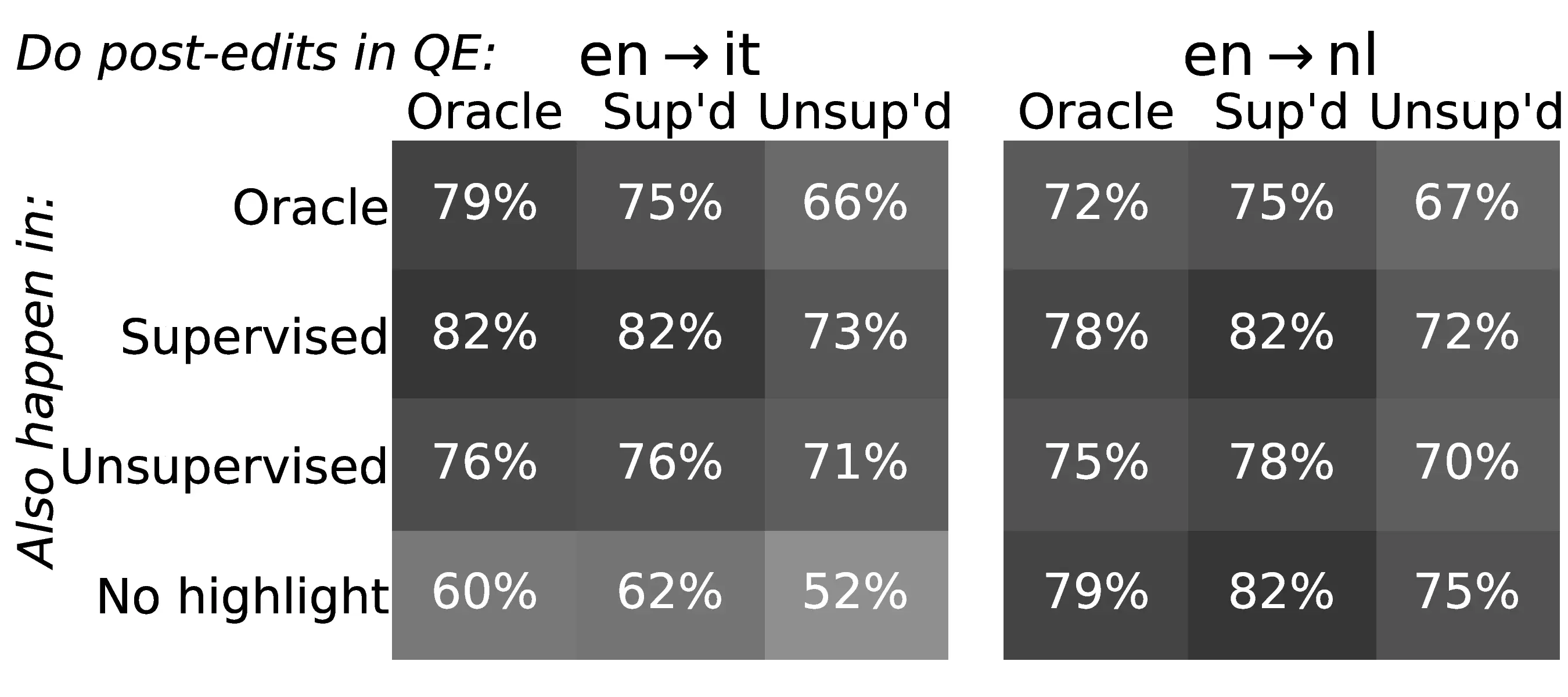

Figure C.6: Post-editing agreement across various modalities Section 9.3.2. Results are averaged across all translator pairs for the two modalities (\(n = 3\) intra-modality, \(n=9\) inter-modality for every language) and all segments.

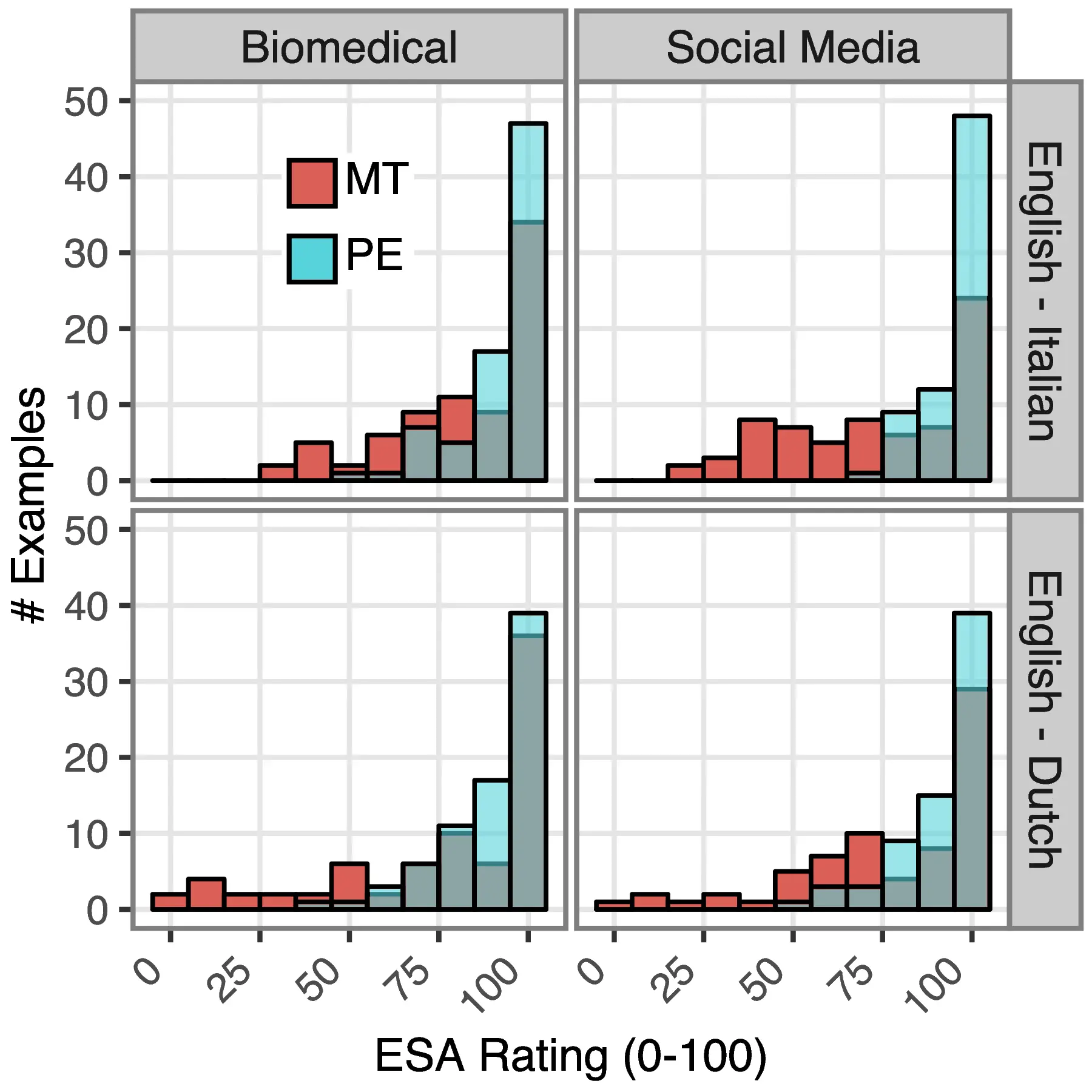

Figure C.7: ESA ratings for MT outputs and post-edits across domains and translation directions.

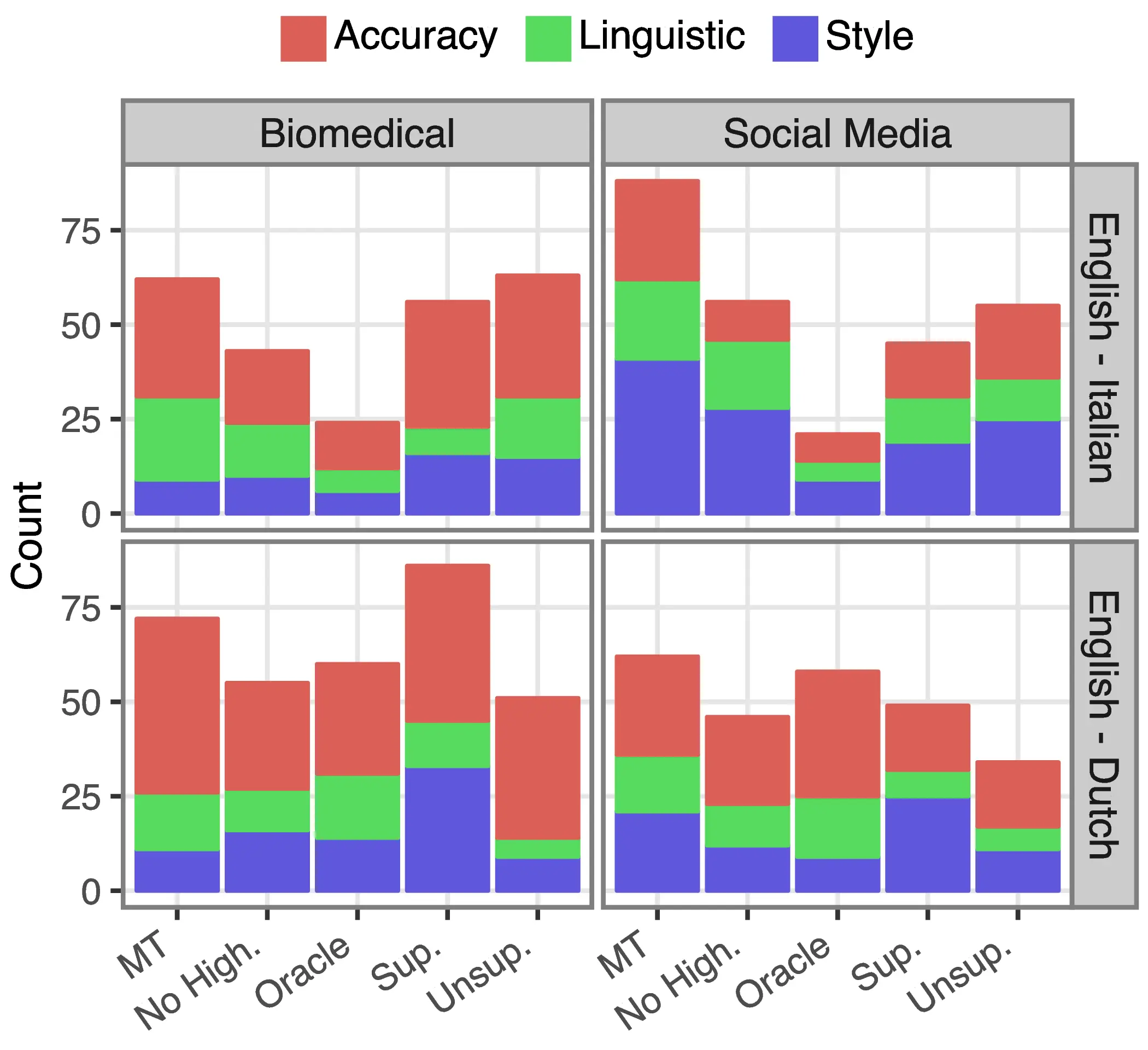

Figure C.8: Distribution of MQM error categories for MT and post-edits across highlight modalities for the two translation directions and domains of QE4PE.
Figure C.9: Editing proportion, measured by word error rate between MT and post-edited texts, with respect to post-editor progression. Values are medians across all post-editors.
Figure C.10: Segment-level post-editing time with respect to post-editor progression. Values are medians across all annotators. Light gray area is min-max values, dark gray represents 25%-75% quantiles. The annotators do not became considerably faster with the task progression, likely due to the simplicity of the task and the high post-editing proficiency of professional post-editors. The high variability in editing times motivates the careful group assignments performed using Pre task edit logs.

C.3 Unsupervised MT Error Detection and Human Disagreement

C.3.1 Full Results

Method QE4PE\(_{\mathbf{t1}}\) QE4PE\(_{\mathbf{t2}}\) QE4PE\(_{\mathbf{t3}}\) QE4PE\(_{\mathbf{t4}}\) QE4PE\(_{\mathbf{t5}}\) QE4PE\(_{\mathbf{t6}}\) QE4PE\(_{\mathbf{avg}}\)
AP F1* AP F1* AP F1* AP F1* AP F1* AP F1* AP F1*
Random Baseline .08 .14 .15 .26 .06 .12 .11 .19 .22 .36 .18 .30 .13 .23
Surprisal .11 .20 .21 .31 .11 .17 .16 .25 .30 .40 .25 .35 .19 .28
Out. Entropy .12 .18 .22 .30 .10 .16 .17 .24 .30 .39 .26 .34 .19 .27
Surprisal MCD\(_{\text{avg}}\) .12 .20 .22 .32 .11 .17 .16 .26 .30 .41 .26 .36 .19 .29
Surprisal MCD\(_{\text{var}}\) .13 .21 .26 .33 .12 .20 .19 .27 .31 .40 .29 .36 .22 .30
LL Surprisal\(_{\text{best}}\) .11 .19 .21 .32 .11 .16 .16 .25 .29 .40 .26 .35 .19 .28
LL KL-Div\(_{\text{best}}\) .09 .16 .19 .28 .08 .14 .13 .21 .25 .37 .22 .31 .16 .25
LL Pred. Depth .09 .16 .18 .28 .07 .13 .14 .21 .25 .37 .21 .31 .16 .24
Attn. Entropy\(_{\text{avg}}\) .11 .16 .17 .27 .12 .17 .11 .19 .23 .36 .19 .31 .15 .24
Attn. Entropy\(_{\text{max}}\) .09 .14 .15 .26 .10 .18 .09 .19 .20 .36 .16 .30 .13 .24
Blood\(_{\text{best}}\) .08 .14 .16 .26 .06 .12 .11 .19 .23 .36 .18 .30 .14 .23
xcomet-xl .11 .24 .22 .35 .10 .20 .16 .30 .27 .35 .23 .34 .18 .30
xcomet-xl\(_{\text{confw}}\) .20 .25 .30 .36 .14 .21 .25 .31 .37 .40 .31 .36 .26 .32
xcomet-xxl .13 .27 .22 .32 .10 .24 .17 .31 .28 .32 .23 .31 .19 .30
xcomet-xxl\(_{\text{confw}}\) .19 .27 .31 .36 .17 .24 .26 .32 .37 .41 .33 .39 .27 .33
Human Editors\(_{\text{min}}\) .17 .33 .26 .38 .10 .21 .16 .26 .25 .36 .23 .30 .19 .31
Human Editors\(_{\text{avg}}\) .20 .38 .29 .43 .14 .30 .22 .39 .32 .38 .30 .40 .25 .39
Human Editors\(_{\text{max}}\) .24 .43 .31 .47 .20 .41 .24 .43 .37 .50 .33 .50 .28 .46
Table C.16: WQE metrics’ performance for predicting error spans from the six edit sets over NLLB 3.3B translations in the En\(\rightarrow\)It QE4PE dataset. Best unsupervised and overall best metric results are highlighted.
Method QE4PE\(_{\mathbf{t1}}\) QE4PE\(_{\mathbf{t2}}\) QE4PE\(_{\mathbf{t3}}\) QE4PE\(_{\mathbf{t4}}\) QE4PE\(_{\mathbf{t5}}\) QE4PE\(_{\mathbf{t6}}\) QE4PE\(_{\mathbf{avg}}\)
AP F1* AP F1* AP F1* AP F1* AP F1* AP F1* AP F1*
Random Baseline .07 .14 .34 .51 .22 .36 .19 .32 .13 .24 .22 .36 .20 .32
Surprisal .12 .19 .41 .51 .30 .39 .29 .37 .21 .30 .31 .41 .27 .36
Out. Entropy .11 .18 .41 .51 .31 .37 .29 .36 .20 .27 .31 .39 .27 .35
Surprisal MCD\(_{\text{avg}}\) .12 .19 .42 .52 .31 .40 .30 .40 .21 .30 .31 .42 .28 .37
Surprisal MCD\(_{\text{var}}\) .13 .21 .45 .53 .36 .41 .34 .40 .24 .32 .36 .42 .31 .38
LL Surprisal\(_{\text{best}}\) .12 .19 .42 .53 .30 .40 .29 .38 .21 .30 .31 .41 .27 .37
LL KL-Div\(_{\text{best}}\) .09 .15 .39 .52 .28 .37 .25 .34 .17 .26 .29 .38 .25 .34
LL Pred. Depth .09 .16 .37 .52 .26 .37 .24 .33 .17 .25 .27 .38 .23 .33
Attn. Entropy\(_{\text{avg}}\) .09 .15 .37 .51 .22 .36 .20 .32 .13 .24 .23 .37 .21 .32
Attn. Entropy\(_{\text{max}}\) .09 .15 .35 .51 .22 .36 .18 .32 .12 .24 .21 .37 .19 .32
Blood\(_{\text{best}}\) .07 .13 .35 .51 .22 .36 .19 .32 .14 .24 .23 .36 .20 .32
xcomet-xl .13 .27 .39 .39 .31 .44 .28 .32 .20 .35 .31 .44 .27 .38
xcomet-xl\(_{\text{confw}}\) .24 .31 .47 .53 .43 .45 .40 .43 .29 .36 .43 .46 .38 .42
xcomet-xxl .13 .28 .39 .29 .30 .35 .26 .35 .19 .31 .30 .35 .26 .32
xcomet-xxl\(_{\text{confw}}\) .24 .30 .48 .53 .43 .45 .40 .42 .31 .35 .43 .45 .38 .42
Human Editors\(_{\text{min}}\) .16 .29 .43 .51 .34 .45 .33 .47 .26 .42 .36 .46 .32 .43
Human Editors\(_{\text{avg}}\) .17 .33 .44 .51 .34 .45 .33 .47 .26 .42 .36 .46 .32 .43
Human Editors\(_{\text{max}}\) .19 .36 .46 .51 .36 .51 .37 .53 .32 .51 .40 .53 .35 .49
Table C.17: WQE metrics’ performance for predicting error spans from the six edit sets over NLLB 3.3B translations in the En\(\rightarrow\)Nl QE4PE dataset. Best unsupervised and overall best metric results are highlighted.
Method Italian Dutch Arabic Turkish Vietnamese Ukrainian Average
AP F1* AP F1* AP F1* AP F1* AP F1* AP F1* AP F1*
Random Baseline .25 .40 .28 .43 .33 .49 .34 .50 .35 .52 .48 .65 .34 .50
Surprisal .34 .45 .36 .46 .42 .51 .43 .54 .46 .55 .55 .65 .43 .53
Out. Entropy .37 .43 .39 .45 .45 .50 .49 .52 .48 .54 .58 .65 .46 .51
Surprisal MCD\(_{\text{avg}}\) .34 .45 .37 .47 .43 .52 .44 .54 .46 .55 .56 .65 .43 .53
Surprisal MCD\(_{\text{var}}\) .39 .46 .41 .47 .47 .53 .49 .55 .48 .55 .61 .67 .48 .54
LL Surprisal\(_{\text{best}}\) .33 .44 .36 .45 .41 .51 .44 .54 .44 .55 .55 .66 .42 .53
LL KL-Div\(_{\text{best}}\) .34 .42 .37 .45 .41 .51 .44 .52 .44 .52 .56 .65 .43 .51
LL Pred. Depth .30 .42 .32 .44 .39 .50 .40 .52 .39 .53 .54 .66 .39 .51
Attn. Entropy\(_{\text{avg}}\) .28 .41 .30 .43 .35 .49 .37 .51 .40 .52 .50 .65 .37 .50
Attn. Entropy\(_{\text{max}}\) .25 .41 .26 .43 .34 .49 .34 .50 .35 .52 .47 .65 .34 .50
Blood\(_{\text{best}}\) .26 .40 .28 .43 .35 .52 .35 .50 .36 .52 .49 .65 .35 .51
xcomet-xl .34 .39 .37 .44 .41 .47 .44 .50 .42 .44 .56 .44 .42 .45
xcomet-xl\(_{\text{confw}}\) .46 .47 .49 .50 .51 .53 .58 .56 .53 .55 .68 .67 .54 .55
xcomet-xxl .34 .36 .35 .35 .43 .47 .45 .48 .43 .42 .57 .41 .43 .42
xcomet-xxl\(_{\text{confw}}\) .48 .49 .50 .50 .55 .54 .58 .56 .56 .57 .70 .67 .56 .55
Table C.18: WQE metrics’ performance for predicting error spans from multiple edit sets (one per language) over mBART-50 translations across the six topologically diverse target languages of DivEMT.
Method En\(\rightarrow\) Ja En\(\rightarrow\) Zh En\(\rightarrow\) Hi Cs\(\rightarrow\) Uk En\(\rightarrow\) Cs En\(\rightarrow\) Ru Average
AP F1* AP F1* AP F1* AP F1* AP F1* AP F1* AP F1*
Random Baseline .02 .03 .03 .07 .03 .07 .05 .09 .06 .11 .08 .16 .05 .09
Surprisal .03 .07 .05 .09 .05 .09 .14 .20 .10 .16 .13 .19 .08 .13
Out. Entropy .03 .08 .06 .11 .06 .10 .20 .27 .12 .18 .14 .20 .10 .16
LL Surprisal\(_{\text{best}}\) .03 .07 .05 .09 .05 .09 .14 .20 .10 .16 .13 .19 .08 .13
LL KL-Div\(_{\text{best}}\) .02 .05 .04 .07 .04 .08 .10 .17 .09 .15 .12 .19 .07 .12
LL Pred. Depth .02 .05 .04 .08 .04 .09 .09 .18 .08 .14 .11 .18 .06 .12
Attn. Entropy\(_{\text{avg}}\) .02 .03 .03 .07 .03 .07 .03 .09 .05 .11 .07 .16 .04 .09
Attn. Entropy\(_{\text{max}}\) .01 .03 .03 .07 .03 .07 .03 .09 .05 .11 .08 .16 .04 .09
xcomet-xl .04 .09 .05 .11 .06 .12 .13 .28 .11 .24 .16 .32 .09 .19
xcomet-xl\(_{\text{confw}}\) .08 .14 .10 .16 .10 .19 .18 .30 .19 .29 .24 .32 .15 .23
xcomet-xxl .04 .11 .06 .13 .05 .11 .13 .28 .11 .24 .16 .33 .09 .20
xcomet-xxl\(_{\text{confw}}\) .07 .15 .09 .19 .09 .17 .19 .29 .22 .30 .28 .33 .16 .24
Table C.19: WQE metrics’ performance for predicting error spans from the ESA annotations (one set per language) over Aya23-35B outputs for the WMT24 dataset.
Figure C.11: Precision-recall curves for xcomet metrics and Surprisal MCDvar for all annotators of QE4PE En\(\rightarrow\)It.
Figure C.12: Precision-recall curves for xcomet metrics and Surprisal MCDvar for all annotators of QE4PE En\(\rightarrow\)Nl.
Figure C.13: Precision-recall curves for xcomet metrics and Surprisal MCDvar on all DivEMT languages.
Figure C.14: Precision-recall curves for xcomet metrics and Out. Entropy on all WMT24 languages.

  1. The document processing order was originally included to identify possible longitudinal effects but was removed due to a lack of significant improvements.↩︎
